Jupiter Kore

Mini-SAS HD Connected Direct Attached Storage / NAS Expansion Solution

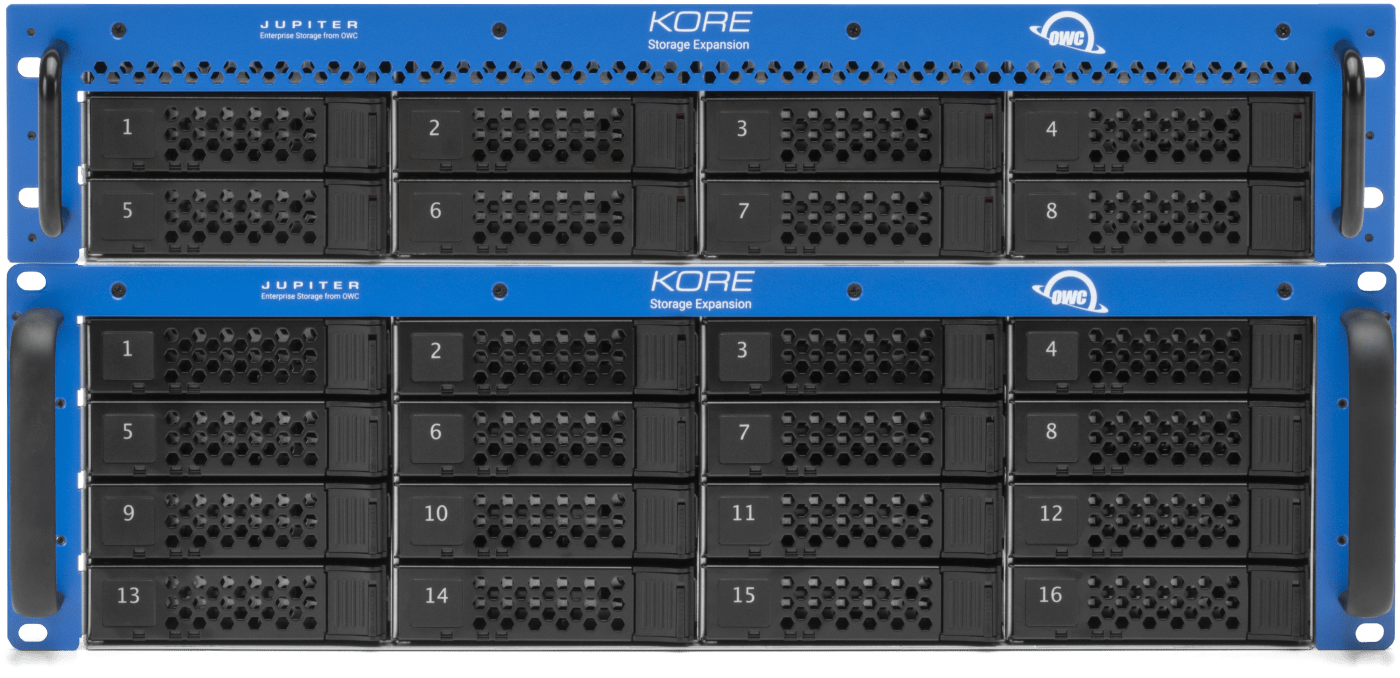

Jupiter Kore front stacked

Let Us Help You Build the Perfect Shared Data Storage System

  • 2U + 3U rack form factor
  • 1.6GB/sec (2U) and 3.4GB/sec (3U) internal disk speeds
  • Connect multiple Kores for up to 2.5PB of storage
  • 12Gb Mini-SAS performance

  • 16-64TB of SSD or 32-320TB HDD storage capacity1
  • Hot swap drives & fans
  • Redundant power

OWC Jupiter Kore

Expand your workflow with the performance, capacity, reliability, and value of OWC Jupiter Kore enterprise-class storage. The Kore is equipped with a high performance 12Gb Mini-SAS expander allowing further expansion beyond a single Kore unit. This allows for the addition of up to 6 more Kore systems to a single server system for a total of 7 Kore units.

The Kore may be directly connected to a 12Gb Mini-SAS system, or used to expand an existing RAID server system including the OWC Jupiter Callisto NAS storage server.

Capacity icon

Up to 320TB, 2.5PB Expanded

OWC Jupiter Kore provides a vast amount of direct-attached or expansion storage capacity with up to 160TB of storage in a 2U 8-drive rack system and up to 320TB of storage in a 3U 16-drive rack system. As your storage needs increase, attach additional Kore systems via Mini-SAS for even greater capacity up to 2.5PB on 3U systems.

RAID icon

RAID

When high-performance RAID storage is a requirement for your computer or server, Kore is the perfect storage for connecting to Mini-SAS RAID controller cards and adapters. Since Kore provides high-speed JBOD storage, it can also extend the storage of networked storage servers such as OWC Jupiter Callisto.

Speed icon

Tremendous Mini-SAS HD Speed

At the core of Kore is the blazing fast Mini-SAS HD interface architecture which provides single cable speeds up to 48Gb/s, or run dual direct Mini-SAS HD cables to achieve up to 96Gb/s. Use this performance to speed up practically any workflow, ingest more video, edit more simultaneous video streams, and move more data around – saving time and money by allowing creative professionals to actualize their artistic vision.

Racks icon

2U & 3U Racks

Whether building from the ground up, or integrating into an existing system, 8-drive 2U racks and 16-drive 3U racks provide installation flexibiilty so you can add the OWC Jupiter Kore system that best provides the capacity you need in the space you have.

Hot Swap icon

Hot Swap Drives & Fans

Downtime is unacceptable. When you need to update, upgrade, or replace a drive or fan, you can keep the rest of the system up and running.

Redundant Power icon

Redundant Power

Kore has robust power supplies that feature redundancy, the ability to hot-swap, and load balancing to ensure that the system remains up and running 24/7.

Specs At-a-Glance

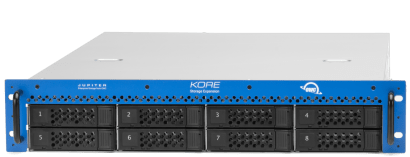

OWC Jupiter Kore with 8 drives

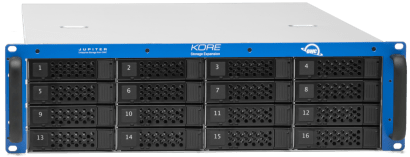

OWC Jupiter Kore with 16 drives

8 drives

16 drives

2U rack space

3U rack space

Up to 16-32TB SSD / 32-160TB HDD of internal raw capacity

Up to 32-64TB SSD / 64-320TB HDD of internal raw capacity

Mini-SAS storage expansion

Mini-SAS storage expansion (up to 2.5PB)

18.9 in x 3.7 in x 29.0 in (WHD)

48.0 cm x 9.4 cm x 73.7 cm (WHD)

18.9 in x 5.2 in x 29.0 in (WHD)

48.0 cm x 13.2 cm x 73.7 cm (WHD)

29.9 pounds (13.56 kg) without drives

40.5 pounds (18.37 kg) without drives

(2) Mini-SAS HD (12Gb/s) SFF-8644 ports

(8) 12Gb/s SAS-3 compliant channels, 96Gb/s total bandwidth (48Gb/s per port)

(2) Mini-SAS HD (12Gb/s) SFF-8644 ports

(8) 12Gb/s SAS-3 compliant channels, 96Gb/s total bandwidth (48Gb/s per port)

380W high-efficiency 1+1 redundant 90~264 VAC full-range, auto-switching power supply

650W 2+1 redundant active PFC 90~264 VAC full-range auto-switching power supply

Operating Environment

32°F to 104°F (0°C to 40°C)

20 to 95% non-condensing

Operating Environment

32°F to 104°F (0°C to 40°C)

20 to 95% non-condensing

Storage Environment

-4°F to 176°F (-20°C to 80°C)

10 to 95% non-condensing

Storage Environment

-4°F to 158°F (-20°C to 70°C)

10 to 95% non-condensing

OWC Limited Warranty

3 Years, expandable up to 5 Years

OWC Limited Warranty

3 Years, expandable up to 5 Years

Speak with our Jupiter Solutions team!

Let us help you build the data storage system that suits your workflow.


  1. Usable capacity depends on RAID level selected.
