Count Ports and Identify Default IP Addresses
Every OWC Jellyfish is pre-configured with IP addresses for each port. You need these if you are connecting manually.

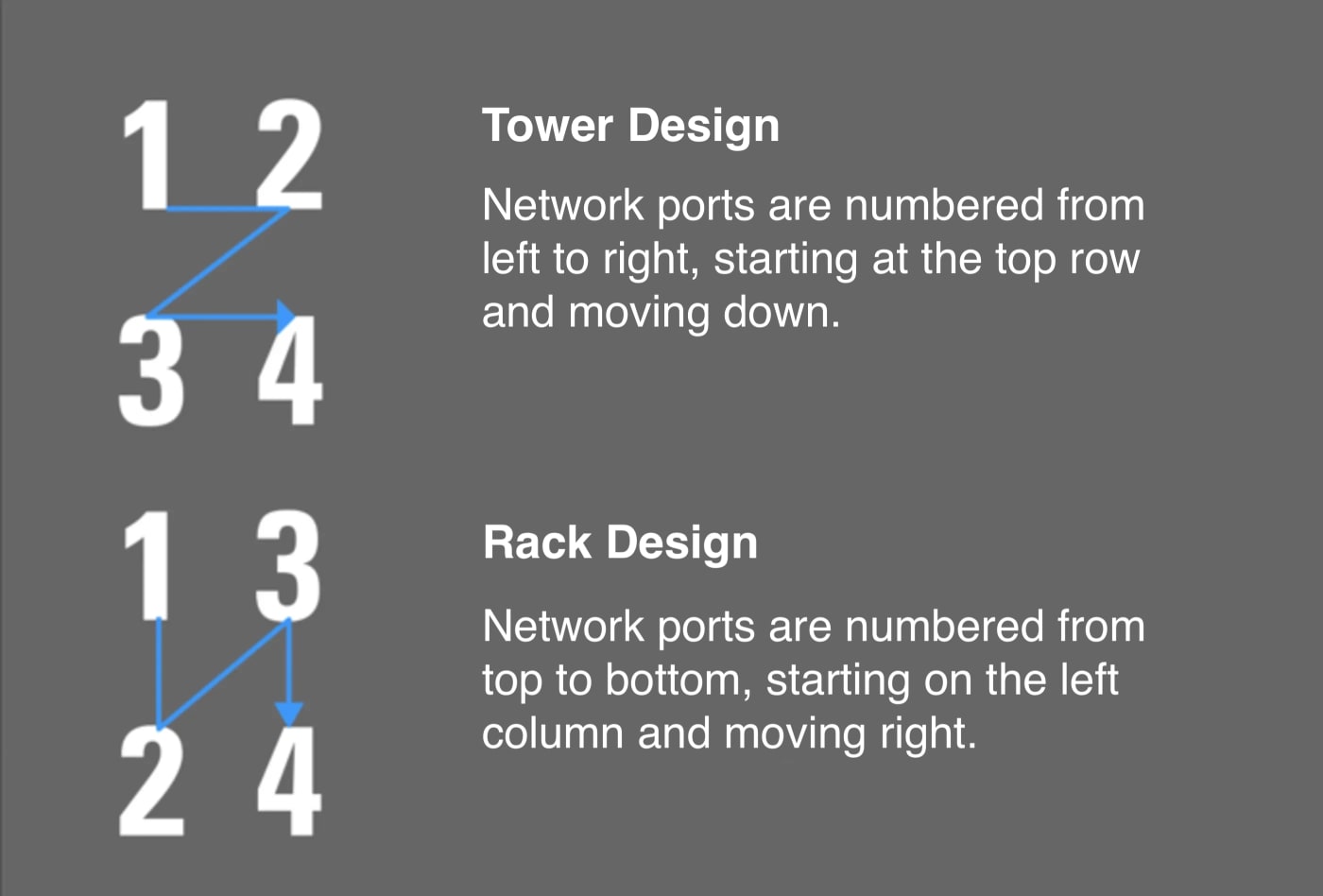

On tower-based (vertical orientation) OWC Jellyfish, ethernet ports are counted starting from left to right and then top to bottom. The ports on rack-based (horizontal orientation) OWC Jellyfish are counted starting from top to bottom, then left to right. See illustration for examples of both.
The first 2 ports are located on the motherboard, with the rest on additional network cards. A separate single ethernet port (IPMI) on the motherboard (typically near the USB ports) does not participate in this count and cannot be used for data access.
DEFAULT IP ADDRESS LIST
Please note this list is for the Jellyfish (server-side) IP addresses. Workstation IPs are identical except they end in .25 instead of .250.
Port 1 - 172.27.1.250
Port 2 - 172.27.2.250
Port 3 - 172.27.3.250
Port 4 - 172.27.4.250
Port 5 - 172.27.5.250
Port 6 - 172.27.6.250
Port 7 - 172.27.7.250
Port 8 - 172.27.8.250
Port 9 - 172.27.9.250
Port 10 - 172.27.10.250
Port 11 - 172.27.11.250
Port 12 - 172.27.12.250
Port 13 - 172.27.13.250
Port 14 - 172.27.14.250
Port 15 - 172.27.15.250
Port 16 - 172.27.16.250
The subnet mask is 255.255.255.0 by default.
